HASTELLOY C276 PIPES-TUBES

Products We Offer

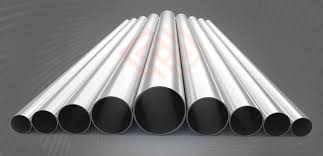

HASTELLOY C276 PIPES-TUBES

The Alloy C276 Seamless Tube can range in size from 15 inches to 150 inches. The schedules vary from sch5 through sch160 and the pressure ratings of the schedules vary as well. There are hydraulic pipes and round pipe types. The UNS N10276 Tubing can be plain ended, treaded or bevel ended. The material has carbon, manganese, silicon, iron, phosphorus, sulfur and cobalt as well. This composition provides the material with high melting point at 1370 degrees Celsius. The minimum yield strength of the Hastelloy C276 Seamless Pipe is 355MPa and the minimum tensile strength is 790MPa. The material is also dense with 8.89 grams per centimeter cube. With these mechanical and physical properties, these pipes and tubes are used in some of the harshest applications such as pollution control, exhaust pipe, heat exchanger and marine engineering applications as well. Please contact us for more information on the ASTM B619 Hastelloy C276 Welded Pipe and the pricing.

HASTELLOY C276 PIPES-TUBES

Specification List of Alloy C276 Seamless Tube

Specifications ASTM B 622 ASME SB 622 / ASTM B 619 ASME SB 619
Dimensions ASTM, ASME and API
Size 15″NB TO 150″NB IN
Specialized in Large Diameter Size
Schedule SCH5, SCH10, SCH40, STD, SCH80, SCH160
Type Seamless / ERW / Welded / Fabricated
Form Round, Hydraulic Etc
Length Single Random, Double Random & Cut Length.
End Plain End, Beveled End, Treaded

C276 Hastelloy Hexagonal Pipe, Prime quality C276 Alloy Pipes, Check Small Diameter ASME SB622 Hastelloy Square Pipe Dimension

UNS N10276 Tubing Schedule Chart

1/8" IPS(.405"O. D.) 3 1/2" IPS( 4.000"O. D.)
SCH 40, 80 SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.) 4" IPS(4.500"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.) 5" IPS( 5.563"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.) 6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.) 8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.) 10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.) 12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.) 14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.) 16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.) 18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

Hastelloy C276 Seamless Pipe Sizes In Mm

WT= wall thickness, OD= Outside Diameter, ID= Inside Diameter

Hastelloy C276 Pipe OD
mm		 Pipe WT
mm		 in. Sch Kg/m
13.72 1.65 1/4 10S 0.50
13.72 2.24 1/4 40S 0.64
13.72 3.02 1/4 80S 0.81
17.15 1.65 3/8 10S 0.64
17.15 2.31 3/8 40S 0.86
17.15 3.20 3/8 80S 1.12
21.34 2.11 1/2 10S 1.02
21.34 2.77 1/2 40S 1.29
21.34 3.73 1/2 80S 1.65
26.67 2.11 3/4 10S 1.30
26.67 2.87 3/4 40S 1.71
26.67 3.91 3/4 80S 2.23
33.40 2.77 1 10S 2.13
33.40 3.38 1 40S 2.54
33.40 4.55 1 80S 3.29
33.40 6.352) 1 160 4.30
42.16 2.77 1¼ 10S 2.73
42.16 3.56 1¼ 40S 3.44
42.16 4.85 1¼ 80S 4.53
42.16 6.352) 1¼ 160 5.69
48.26 2.77 1½ 10S 3.16
48.26 3.68 1½ 40S 4.11
48.26 5.08 1½ 80S 5.49
60.33 2.77 2 10S 3.99
60.33 3.91 2 40S 5.52
60.33 5.54 2 80S 7.60
60.33 8.742) 2 160 11.29
73.03 3.05 2½ 10S 5.35
73.03 5.16 2½ 40S 8.77
73.03 7.01 2½ 80S 11.59
88.90 3.05 3 10S 6.56
88.90 5.49 3 40S 11.47
88.90 7.62 3 80S 15.51
88.90 11.132) 3 160 21.67
101.60 3.05 3½ 10S 7.53
101.60 5.74 3½ 40S 13.78
101.60 8.08 3½ 80S 18.92
114.30 3.05 4 10S 8.50
114.30 6.02 4 40S 16.32
114.30 8.56 4 80S 22.67
114.30 13.492) 4 160 34.05
141.30 6.55 5 40S 22.10
141.30 9.53 5 80S 31.44
141.30 15.882) 5 160 49.87
168.28 3.4 6 10S 14.04
168.28 7.11 6 40S 28.69
168.28 10.97 6 80S 43.21
168.28 14.27 6 120 54.75
168.28 18.262) 6 160 68.59
219.08 8.18 8 40S 43.20
219.08 12.7 8 80S 65.63
219.08 18.23 8 120 91.30
219.08 23.012) 8 160 112.97

Alloy C276 ERW Tube Size In Inch

Wall Thickness Alloy C276 Tube Sizes ( O.D.)
.010 1/16" , 1/8" , 3/16"
.020 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012 1/8"
.016 1/8" , 3/16"
.028 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134 1"
.250 3"
.375 3 1/2"

Hastelloy C276 Welded Pipe Chemical Composition

Alloy C276 Ni C Mo Mn Si Fe P S Co Cr
Balance 0.010 max 15.00 – 17.00 1.00 max 0.08 max 4.00 – 7.00 0.04 max 0.03 max 2.5 max 14.50 – 16.50

C276 Hastelloy Hexagonal Pipe Mechanical Strength Table

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.89 g/cm3 1370 °C (2500 °F) Psi – 52,000 , MPa – 355 Psi – 1,15,000 , MPa – 790 40 %



Hastelloy C276 Seamless Tubes is supplied by Siddhagiri Metals and Tubes at reasonabe prices. We are a global exporter of ASTM B622 UNS N10276 Tubes. With almost 50 years in the business, we can offer the finest expertise to build practically any type of metal, alloys or steel. All of our manufactured products are subject to the rigirous audit process, which allow us to deliver quality products that meet customer requirements at low cost.



Seamless Tube is made from a solid round steel ‘billet’ which is heated and pushed or pulled over a form until the steel is shaped into a hollow tube. Billets are procured both from indigenous suppliers and from abroad. We carry a wide range of high-temperature seamless tubing, available in a variety of sizes and specifications, to be used in several industry for all kinds of high-temperature applications such as, thermocouple sheathes, burners, lance tubes, gas turbine, chemical processing, furnace equipment, jet engine combustion tubes, capillary tubes & heat exchangers.



We supply a full range of specialized Hastelloy seamless tubes used for high-performance gas chromatography (GC) and liquid chromatography (LC) as components for chromatography columns used for analytical and preparative processes in diverse industries. To separate in very small sample sizes for very complex mixtures, these analyzes can be highly accurate and precise. Samples can be used for all kind of materials such as; water, gases, fuels, air, foods, flavorings, pesticides, plastics, drugs, tissue extracts. Hastelloy C276 Seamless tubes are available in various sizes ranging from 1/8" OD TO 2"OD, 3MM OD TO 38 MM OD. The thickness of Hastelloy tube ranges from 1MM TO 3 MM, 0.028 TO 0.156 IN. Hastelloy C276 Seamless tubes are available in Indian, European and Japanese origin.



Siddhagiri Metals and Tubes has exported Hastelloy Tubes to many countries including Thailand, Indonesia, UAE, Japan, South Africa, Iraq, Iran, Saudi Arabia, Australia, Europe, Qatar, Malaysia, Congo, Brazil, Chile, USA, Canada, Japan, etc.



  • Origin: Indian Origin,Japanese Origin, European Origin,
  • Testing and Documents: Non Destructive Test Reports, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, PMI Test Reports, Visual Inspection Reports, Mill Test Certificates,NABL Approved Lab Reports , Third Party Inspection Reports,
  • Packing: Packed in Wooden Boxes, Steel Strips Bundled, Bubble wraps, or as per Customers Requests

Hastelloy C276 Seamless Tube Weight Chart

OD inches ID inches Ave. Wall inches D/t Ratio Internal Area (in2) Tube Cross Sectional Area (in2)
0.250 0.210 0.020 12.50 0.0346 0.0145
0.250 0.194 0.028 8.93 0.0296 0.0195
0.250 0.180 0.035 7.14 0.0254 0.0236
0.250 0.152 0.049 5.10 0.0181 0.0309
0.250 0.120 0.065 3.85 0.0113 0.0378
0.375 0.335 0.020 18.75 0.0881 0.0223
0.375 0.319 0.028 13.39 0.0799 0.0305
0.375 0.305 0.035 10.71 0.0731 0.0374
0.375 0.277 0.049 7.65 0.0603 0.0502
0.375 0.245 0.065 5.77 0.0471 0.0633
0.500 0.460 0.020 25.00 0.1662 0.0302
0.500 0.444 0.028 17.86 0.1548 0.0415
0.500 0.430 0.035 14.29 0.1452 0.0511
0.500 0.402 0.049 10.20 0.1213 0.0694
0.500 0.370 0.065 7.69 0.1075 0.0888
0.500 0.334 0.083 6.02 0.0876 0.1087
0.625 0.585 0.020 31.25 0.2688 0.0380
0.625 0.569 0.028 22.32 0.2543 0.0525
0.625 0.555 0.035 17.86 0.2419 0.0649
0.625 0.527 0.049 12.76 0.2181 0.0887
0.625 0.495 0.065 9.62 0.1924 0.1144
0.625 0.459 0.083 7.53 0.1655 0.1413
0.625 0.435 0.095 6.58 0.1486 0.1582
0.625 0.407 0.109 5.73 0.1301 0.1767
0.750 0.694 0.028 26.79 0.3783 0.0635
0.750 0.680 0.035 21.43 0.3632 0.0786
0.750 0.652 0.049 15.31 0.3339 0.1079
0.750 0.620 0.065 11.54 0.3019 0.1399
0.750 0.584 0.083 9.04 0.2679 0.1739
0.750 0.560 0.095 7.89 0.2463 0.1955
0.750 0.532 0.109 6.88 0.2223 0.2195
0.750 0.510 0.120 6.25 0.2043 0.2375
0.875 0.835 0.020 43.75 0.5476 0.0537
0.875 0.819 0.028 31.25 0.5268 0.0745
0.875 0.805 0.035 25.00 0.5090 0.0924
0.875 0.777 0.049 17.86 0.4742 0.1272
0.875 0.745 0.065 13.46 0.4359 0.1654
0.875 0.709 0.083 10.54 0.3948 0.2065
0.875 0.685 0.095 9.21 0.3685 0.2328
0.875 0.657 0.109 8.03 0.3390 0.2623
0.875 0.635 0.120 7.29 0.316L7 0.2846
1.000 0.944 0.028 35.71 0.6999 0.0855
1.000 0.930 0.035 28.57 0.6793 0.1061
1.000 0.902 0.049 20.41 0.6390 0.1464
1.000 0.870 0.065 15.38 0.5945 0.1909
1.000 0.834 0.083 12.05 0.5463 0.2391
1.000 0.810 0.095 10.53 0.5153 0.2701
1.000 0.782 0.109 9.17 0.4803 0.3051
1.000 0.760 0.120 8.33 0.4536 0.3318
1.000 0.732 0.134 7.46 0.4208 0.3646
1.250 1.180 0.035 35.71 1.0936 0.1336
1.250 1.152 0.049 25.51 1.0423 0.1849
1.250 1.120 0.065 19.23 0.9852 0.2420
1.250 1.084 0.083 15.06 0.9229 0.316L3
1.250 1.060 0.095 13.16 0.8825 0.3447
1.250 1.032 0.109 11.47 0.8365 0.3907
1.250 1.010 0.120 10.42 0.8012 0.4260
1.250 0.982 0.134 9.33 0.7574 0.4698
1.500 1.430 0.035 42.86 1.6061 0.1611
1.500 1.402 0.049 30.61 1.5438 0.2234
1.500 1.370 0.065 23.08 1.4741 0.2930
1.500 1.334 0.083 18.07 1.3977 0.3695
1.500 1.310 0.095 15.79 1.3478 0.4193
1.500 1.282 0.109 13.76 1.2908 0.4763
1.500 1.260 0.120 12.50 1.2469 0.5202
1.500 1.232 0.134 11.19 1.1921 0.5750
1.500 1.204 0.148 10.14 1.1385 0.6286
1.750 1.680 0.035 50.00 2.2167 0.1886
1.750 1.902 0.049 40.82 2.8413 0.3003
1.750 1.620 0.065 26.92 2.0612 0.3441
1.750 1.584 0.083 21.08 1.9706 0.4347
1.750 1.560 0.095 18.42 1.9113 0.4939
1.750 1.532 0.109 16.06 1.8433 0.5619
1.750 1.510 0.120 14.58 1.7908 0.6145
1.750 1.482 0.134 13.06 1.7250 0.6803
1.750 1.454 0.148 11.82 1.6604 0.7449

5 Types of Alloy C276 Tube Drawing

  •  Tube Sinking
  •  Mandrel Drawing
  •  Stationary Mandrel
  •  Moving Mandrel
  •  Floating Mandrel

Hastelloy C276 Tube Drawing Process

Hastelloy C276 Tube Drawing Process

Alloy C276 Tube Nominal Tube Wall Thickness & Dimensions

(O.D.) Gauge
BWG 00 BWG 0 BWG 1 BWG 2 BWG 3 BWG 4 BWG 5 BWG 6 BWG 7 BWG 8 BWG 9 BWG 10 BWG 11 BWG 12 BWG 13 BWG 14 BWG 15 BWG 16 BWG 17 BWG 18 BWG 19 BWG 20 BWG 21 BWG 22 BWG 23 BWG 24
Wall Thickness (Inches)
0.380 0.340 0.300 0.284 0.259 0.238 0.220 0.203 0.180 0.165 0.148 0.134 0.120 0.109 0.095 0.083 0.072 0.065 0.058 0.049 0.042 0.035 0.032 0.028 0.025 0.022
Inside Dia
1/4"  N/A  N/A  N/A  N/A  N/A  N/A  N/A  N/A  N/A  N/A  N/A  N/A 0.010 0.032 0.060 0.084 0.106 0.120 0.134 0.152 0.166 0.180 0.186 0.194 0.200 0.206
3/8"  N/A  N/A  N/A  N/A  N/A  N/A  N/A  N/A 0.015 0.045 0.079 0.107 0.135 0.157 0.185 0.209 0.231 0.245 0.259 0.277 0.291 0.305 0.311 0.319 0.325 0.331
1/2"  N/A  N/A  N/A  N/A  N/A 0.024 0.060 0.094 0.140 0.170 0.204 0.232 0.260 0.282 0.310 0.334 0.356 0.370 0.384 0.402 0.416 0.430 0.436 0.444 0.450 0.456
5/8"  N/A  N/A 0.025 0.057 0.107 0.149 0.185 0.219 0.265 0.295 0.329 0.357 0.385 0.407 0.435 0.459 0.481 0.495 0.509 0.527 0.541 0.555 0.561 0.569 0.575 0.581
1 1/8" 0.365 0.445 0.525 0.557 0.607 0.649 0.685 0.719 0.765 0.795 0.829 0.857 0.885 0.907 0.935 0.959 0.981 0.995 1.009 1.027 1.041 1.055 1.061 1.069 1.075 1.081
1 1/4" 0.490 0.570 0.650 0.682 0.732 0.774 0.810 0.844 0.890 0.920 0.954 0.982 1.010 1.032 1.060 1.084 1.106 1.120 1.134 1.152 1.166 1.180 1.186 1.194 1.200 1.206
1 1/2" 0.740 0.820 0.900 0.932 0.982 1.024 1.060 1.094 1.140 1.170 1.204 1.232 1.260 1.282 1.310 1.334 1.356 1.370 1.384 1.402 1.416 1.430 1.436 1.444 1.450 1.456
1 3/4" 0.990 1.070 1.150 1.182 1.232 1.274 1.310 1.344 1.390 1.420 1.454 1.482 1.510 1.532 1.560 1.584 1.606 1.620 1.634 1.652 1.666 1.680 1.686 1.694 1.700 1.706
3/4"  N/A 0.070 0.150 0.182 0.232 0.274 0.310 0.344 0.390 0.420 0.454 0.482 0.510 0.532 0.560 0.584 0.606 0.620 0.634 0.652 0.666 0.680 0.686 0.694 0.700 0.706
7/8" 0.115 0.195 0.275 0.307 0.357 0.399 0.435 0.469 0.515 0.545 0.579 0.607 0.635 0.657 0.685 0.709 0.731 0.745 0.759 0.777 0.791 0.805 0.811 0.819 0.825 0.831
1" 0.240 0.320 0.400 0.432 0.482 0.524 0.560 0.594 0.640 0.670 0.704 0.732 0.760 0.782 0.810 0.834 0.856 0.870 0.884 0.902 0.916 0.930 0.936 0.944 0.950 0.956
2" 1.240 1.320 1.400 1.432 1.482 1.524 1.560 1.594 1.640 1.670 1.704 1.732 1.760 1.782 1.810 1.834 1.856 1.870 1.884 1.902 1.916 1.930 1.936 1.944 1.950 1.956
2 1/4" 1.490 1.570 1.650 1.682 1.732 1.774 1.810 1.844 1.890 1.920 1.954 1.982 2.010 2.032 2.060 2.084 2.106 2.120 2.134 2.152 2.166 2.180 2.186 2.194 2.200 2.206
2 1/2" 1.740 1.820 1.900 1.932 1.982 2.024 2.060 2.094 2.140 2.170 2.204 2.232 2.260 2.282 2.310 2.334 2.356 2.370 2.384 2.402 2.416 2.430 2.436 2.444 2.450 2.456
2 3/4" 1.990 2.070 2.150 2.182 2.232 2.274 2.310 2.344 2.390 2.420 2.454 2.482 2.510 2.532 2.560 2.584 2.606 2.620 2.634 2.652 2.666 2.680 2.686 2.694 2.700 2.706
3 1/4" 2.490 2.570 2.650 2.682 2.732 2.774 2.810 2.844 2.890 2.920 2.954 2.982 3.010 3.032 3.060 3.084 3.106 3.120 3.134 3.152 3.166 3.180 3.186 3.194 3.200 3.206
3 1/2" 2.740 2.820 2.900 2.932 2.982 3.024 3.060 3.094 3.140 3.170 3.204 3.232 3.260 3.282 3.310 3.334 3.356 3.370 3.384 3.402 3.416 3.430 3.436 3.444 3.450 3.456
3 3/4" 2.990 3.070 3.150 3.182 3.232 3.274 3.310 3.344 3.390 3.420 3.454 3.482 3.510 3.532 3.560 3.584 3.606 3.620 3.634 3.652 3.666 3.680 3.686 3.694 3.700 3.706
3" 2.240 2.320 2.400 2.432 2.482 2.524 2.560 2.594 2.640 2.670 2.704 2.732 2.760 2.782 2.810 2.834 2.856 2.870 2.884 2.902 2.916 2.930 2.936 2.944 2.950 2.956
4" 3.240 3.320 3.400 3.432 3.482 3.524 3.560 3.594 3.640 3.670 3.704 3.732 3.760 3.782 3.810 3.834 3.856 3.870 3.884 3.902 3.916 3.930 3.936 3.944 3.950 3.956
4 1/4" 3.490 3.570 3.650 3.682 3.732 3.774 3.810 3.844 3.890 3.920 3.954 3.982 4.010 4.032 4.060 4.084 4.106 4.120 4.134 4.152 4.166 4.180 4.186 4.194 4.200 4.206
4 1/2" 3.740 3.820 3.900 3.932 3.982 4.024 4.060 4.094 4.140 4.170 4.204 4.232 4.260 4.282 4.310 4.334 4.356 4.370 4.384 4.402 4.416 4.430 4.436 4.444 4.450 4.456
4 3/4" 3.990 4.070 4.150 4.182 4.232 4.274 4.310 4.344 4.390 4.420 4.454 4.482 4.510 4.532 4.560 4.584 4.606 4.620 4.634 4.652 4.666 4.680 4.686 4.694 4.700 4.706
5" 4.240 4.320 4.400 4.432 4.482 4.524 4.560 4.594 4.640 4.670 4.704 4.732 4.760 4.782 4.810 4.834 4.856 4.870 4.884 4.902 4.916 4.930 4.936 4.944 4.950 4.956
5 1/4" 4.490 4.570 4.650 4.682 4.732 4.774 4.810 4.844 4.890 4.920 4.954 4.982 5.010 5.032 5.060 5.084
