HASTELLOY C22 PIPES-TUBES

Products We Offer

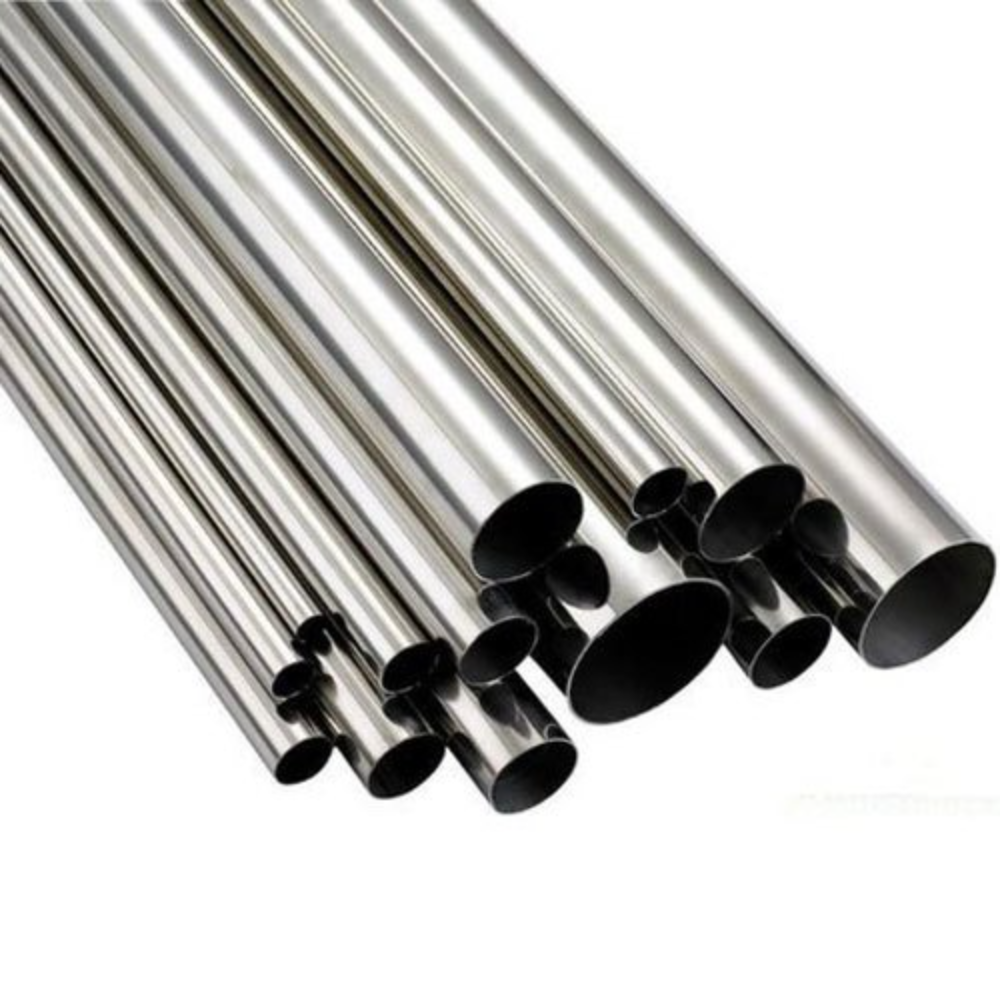

HASTELLOY C22 PIPES-TUBES

HASTELLOY C22 PIPES-TUBES

Alloy C22 Round Pipe, ASTM B622 Hastelloy C22 Seamless Pipe, WERKSTOFF NR. 2.4602 Pipe

Bhawal Steel Agency is a one-stop solution for Hastelloy C22 Pipes; we are the steel manufacturer and suppliers of various forms of Hastelloy such as fittings, flanges, plates, coils, etc. We offer a wide range of customization for our esteemed clients according to their requirements.

Hastelloy C22 pipe is one of the grades from the Hastelloy family of corrosion-resistant alloys.  Hastelloy C22 has excellent corrosion resistance, is even better than C276 grade, and is considered an upgraded version of Hastelloy C276 grade. Hastelloy C22 has a higher percentage of chromium, provides even better resistance against pitting and crevice corrosive environments, and improves earthly life as well. Hastelloy C22 can also resist oxidizing mediums that usually can contain sodium chloride (NaCl) and Hydrochloric acid (HCL) like others and shows outstanding performance against cupric and ferric chlorides. Hastelloy C22 pipes have a chemical balance of nickel up to 56%, 13% of molybdenum, and the rest of proportion for chromium of about 22%. Hastelloy C22 pipes can be more resistant against oxidizing media as it has been proven at high temperatures. However, C22 and C276 have similar behavioural properties in reducing environments. Reducing agents are generally known as oxalic acids and formic acids.  C22 pipes can be regularly used as weld filler due to their proven excellent weldability and alloying ability, leading to improving corrosion resistance. Hastelloy C22 is also amazing against intergranular corrosion in high heat treating zones.

Process industries, petrochemical industries, power generation, chemical industries, paper and pulp industries, and others are among the industries that look for Hastelloy c22 pipes.

Alloy C22 Specification

Specifications ASTM B 622 ASME SB 622 / ASTM B 619 ASME SB 619
Dimensions ASME, ASTM, and API
Size 15″NB upto 150″NB IN
Specialized in Sizes in Large Diameter
Schedule Schedule 5, 10, 40, STD, 80, 160
Type ERW / Seamless / Welded / LSAW Pipes / Fabricated
Form Hydraulic, Round, Etc
Length Double Random, Single Random, & Cut Length.
End Beveled End, Plain End, Treaded

Pressure Rating Of UNS N10276 Welded Pipe

Pipe O.D.
(in.)		 Wall Thickness of Pipe (inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (psig)
1/8 7900 10100
1/4 3700 4800 7000 9500
5/16   3700 5400 7300
3/8   3100 4400 6100
1/2   2300 3200 4400
3/4     2200 3000 4000 4600
1       2200 2900 3400 3900 4300

Weight Chart Of Alloy C22 Seamless Pipe

NPS Outside Diameter Wall Thickness   Weight Weight
in mm in mm Sched kg/Mtr Lb/ft
1/2″ 0.840 21 0.109 2.769 40 STD 1.268 0.851
      0.147 3.734 80 STD 1.621 1.088
3/4″ 1.050 27 0.113 2.870 40 STD 1.684 1.131
      0.154 3.912 80 STD 2.195 1.474
1″ 1.315 33 0.133 3.378 40 STD 2.501 1.679
      0.179 4.547 80 STD 3.325 2.172
1 1/4″ 1.660 42 0.140 3.556 40 STD 3.385 2.273
      0.191 4.851 80 STD 4.464 2.997
1 1/2″ 1.900 48 0.145 3.683 40 STD 4.048 2.718
      0.200 5.080 80 STD 5.409 3.361
2″ 2.375 60 0.154 3.912 40 STD 5.441 3.653
      0.218 5.537 80 STD 7.480 5.022
2 1/2″ 2.875 73 0.203 5.516 40 STD 8.629 5.793
      0.276 7.010 80 STD 11.411 7.661
3″ 3.500 89 0.216 5.486 40 STD 11.284 7.576
      0.300 7.620 80 STD 15.272 10.253
4″ 4.500 114 0.237 6.020   16.073 10.790
      0.337 8.560   22.318 14.983
6″ 6.625 168 0.188 4.775   19.252 12.924
      0.203 5.516   20.739 13.923
      0.219 5.563   22.318 14.983
      0.250 6.350   25.354 17.021
      0.280 7.112 40 STD 58.263 18.974
      0.312 7.925   31.334 21.036
      0.375 9.525   37.285 25.031
      0.432 10.973 80 XHY 42.561 28.573
      0.500 12.700   48.719 32.708
8″ 8.625 219 0.188 4.775   25.233 16.940
      0.203 5.156   27.198 18.259
      0.219 5.563   29.286 19.661
      0.250 6.350 20 33.308 22.361
      0.277 7.036 30 36.786 24.696
      0.322 8.179 40 42.352 28.554
      0.375 9.525   49.216 33.041
      0.406 10.312 60 53.085 35.638
      0.500 12.700 80 XHY 64.627 43.388
10″ 10.750 273 0.188 4.775   31.588 21.207
      0.219 5.563   36.689 24.631
      0.250 6.350 20 41.759 28.035
      0.307 7.798 30 51.002 34.240
      0.344 8.738   56.946 38.231
      0.365 9.271 40 STD 63.301 40.483
      0.438 11.125   71.852 48.238
      0.500 12.700 60 XHY 81.530 54.735
      0.594 15.088 80 95.969 64.429
12″ 12.750 324 0.188 4.775   37.570 25.222
      0.219 5.563   43.657 29.309
      0.250 6.350   49.713 33.375
      0.281 7.137   55.739 37.420
      0.312 7.925   61.735 41.445
      0.375 9.525   73.824 49.562
      0.406 10.312   79.727 53.525
      0.500 12.700   97.438 65.415
      0.562 14.275   108.966 73.154
14″ 14.000 356 0.188 4.775   41.308 27.732
      0.219 5.563   48.012 32.233
      0.250 6.350 20 54.685 36.713
      0.281 7.137   61.327 41.172
      0.312 7.925   67.939 45.611
      0.375 9.525 STD 81.281 54.568
      0.438 11.125 40 94.498 63.441
      0.500 12.700 XHY 107.381 72.090
      0.625 15.875   132.983 89.278
16” 16.000 406 0.188 4.775   47.290 21.748
      0.219 5.563   54.980 36.910
      0.250 6.350 10 62.639 42.053
      0.281 7.137   70.268 47.174
      0.312 7.925 20 77.866 52.275
      0.344 8.738   85.677 57.519
      0.375 9.525

30

STD

 93.213 62.578
      0.438 11.125   108.433 72.797
      0.500 12.700

40

XHY

 123.289 82.770
18″ 18.000 457 0.219 5.563   61.948 41.588
      0.250 6.350   70.593 47.393
      0.281 7.137   79.208 53.176
      0.312 7.925 20 87.792 58.939
      0.375 9.525 STD 105.144 70.588
      0.438 11.125 30 122.369 82.152
      0.500 12.700 XHY 139.198 93.450
      0.562 14.275 40 155.904 104.666
      0.625 15.875   172.754 115.978
20″ 20.000 508 0.250 6.350   78.547 52.733
      0.282 7.163   88.458 59.386
      0.312 7.925   97.719 65.604
      0.375 9.525 20 STD 117.075 78.598
      0.438 11.125   136.305 91.508
      0.500 12.700 30 XHY 155.106 104.130
      0.594 15.088 40 183.378 123.110
      0.625 15.875   192.640 129.328
      0.688 17.475   211.368 141.901
24″ 24.000 610 0.250 6.350   94.456 63.413
      0.281 7.137   106.029 71.183
      0.312 7.925   117.573 18.932
      0.375 9.525 20 STD 140.938 64.618
      0.438 11.125   164.176 110.219
      0.500 12.700 XHY 186.923 125.490
      0.625 15.875   232.410 156.028
      0.688 17.475 40 255.148 171.293
      0.750 19.050   277.401 186.233
30″ 30.000 762 0.250 6.350   118.318 79.433
      0.281 7.137   132.851 89.189
      0.312 7.925 10 147.353 98.925
      0.375 9.525 STD 176.731 118.648
      0.438 11.125   205.983 138.286
      0.500 12.700 20 XHY 234.647 157.530
      0.625 15.875 30 292.066 196.078
      0.688 17.475   320.817 215.380
      0.750 19.050   348.988 234.293
36″ 36.000 914 0.250 6.350   142.180 95.453
      0.281 7.137   159.672 107.196
      0.312 7.925 10 177.133 118.918
      0.375 9.525 STD 215.525 142.678
      0.438 11.125   247.790 166.353
      0.500 12.700 20 XHY 282.372 198.570
      0.625 15.875   351.723 236.128


0.688

 17.475   386.487 259.467


0.750

 19.050   420.576 282.353
42″ 42.000 1067 0.312 7.925   206.914 138.911
      0.375 9.525 STD 248.319 166.708
      0.500 12.700 XHY 33.097 221.610
      0.750 19.050   492.163 330.413
48″ 48.000 1219 0.375 9.525 STD 284.112 190.738
      0.438 11.125   331.404 222.487
      0.500 12.700 XHY 377.822 253.650
      0.750 19.050   563.750 378.473
      0.875 22.225   655.969 440.383

Hastelloy C22 Seamless Pipe Size Chart In Mm

ASTM B622 Hastelloy C22 Pipe OD
mm		 Pipe WT
mm		 in. Sch Kg/m
13.72 1.65 1/4 10S 0.50
13.72 2.24 1/4 40S 0.64
13.72 3.02 1/4 80S 0.81
17.15 1.65 3/8 10S 0.64
17.15 2.31 3/8 40S 0.86
17.15 3.20 3/8 80S 1.12
21.34 2.11 1/2 10S 1.02
21.34 2.77 1/2 40S 1.29
21.34 3.73 1/2 80S 1.65
26.67 2.11 3/4 10S 1.30
26.67 2.87 3/4 40S 1.71
26.67 3.91 3/4 80S 2.23
33.40 2.77 1 10S 2.13
33.40 3.38 1 40S 2.54
33.40 4.55 1 80S 3.29
33.40 6.352) 1 160 4.30
42.16 2.77 1¼ 10S 2.73
42.16 3.56 1¼ 40S 3.44
42.16 4.85 1¼ 80S 4.53
42.16 6.352) 1¼ 160 5.69
48.26 2.77 1½ 10S 3.16
48.26 3.68 1½ 40S 4.11
48.26 5.08 1½ 80S 5.49
60.33 2.77 2 10S 3.99
60.33 3.91 2 40S 5.52
60.33 5.54 2 80S 7.60
60.33 8.742) 2 160 11.29
73.03 3.05 2½ 10S 5.35
73.03 5.16 2½ 40S 8.77
73.03 7.01 2½ 80S 11.59
88.90 3.05 3 10S 6.56
88.90 5.49 3 40S 11.47
88.90 7.62 3 80S 15.51
88.90 11.132) 3 160 21.67
101.60 3.05 3½ 10S 7.53
101.60 5.74 3½ 40S 13.78
101.60 8.08 3½ 80S 18.92
114.30 3.05 4 10S 8.50
114.30 6.02 4 40S 16.32
114.30 8.56 4 80S 22.67
114.30 13.492) 4 160 34.05
141.30 6.55 5 40S 22.10
141.30 9.53 5 80S 31.44
141.30 15.882) 5 160 49.87
168.28 3.4 6 10S 14.04
168.28 7.11 6 40S 28.69
168.28 10.97 6 80S 43.21
168.28 14.27 6 120 54.75
168.28 18.262) 6 160 68.59
219.08 8.18 8 40S 43.20
219.08 12.7 8 80S 65.63
219.08 18.23 8 120 91.30
219.08 23.012) 8 160 112.97

ASTM B619 UNS N10276 pipe Wall Thickness

Types Out diameter Wall thickness Length
NB Sizes (in stock) 1/8” ~ 8” SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 Upto 6 Meters
Hastelloy C22 Seamless Pipe (Custom Sizes) 5.0mm ~ 203.2mm As per requirement Upto 6 Meters
Hastelloy C22 Welded Pipe (in Stock + Custom Sizes) 5.0mm ~ 1219.2mm 1.0 ~ 15.0 mm Upto 6 Meters

Alloy C22 Hastelloy ERW Pipe Schedule Chart

1/8" IPS(.405"O. D.) 3 1/2" IPS( 4.000"O. D.)
SCH 40, 80 SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.) 4" IPS(4.500"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.) 5" IPS( 5.563"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.) 6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.) 8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.) 10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.) 12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.) 14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.) 16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.) 18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

UNS N10276 Pipe Tests & Certificate

  •  Material certificate type EN 10204 Type 3.1
  •  Micro and MacroTest
  •  Positive Material Identification – PMI Testing
  •  Hardness Test
  •  Chemical Analysis – Spectro Analysis
  •  Intergranular Corrosion (IGC) Test
  •  Flaring Test
  •  Flattening Test
  •  Pitting Resistance Test
  •  Mechanical Testing Such as Tensile of Area

Hastelloy C22 Welded Pipes Chemical Composition

Hastelloy C22 Fe Ni P C Co Mo Si Mn S Cr
4 – 7 Balance 0.04 max 0.01 max 2.5 max 15 – 17 0.08 max 1.0 max 0.03 max 14.5 – 16.5

Alloy C22 Mechanical Properties Chart

Density Yield Properties (0.2%Offset) Melting Point Elongational Tensile Properties
8.89 g/cm3 Psi – 52,000 , MPa – 355 1370 °C (2500 °F) 40 % Psi – 1,15,000 , MPa – 790

C22 Alloy Equivalent Material

STANDARD WERKSTOFF NR. UNS OR EN GOST JIS
Hastelloy C22 2.4819 N10276 ЭП760 NiMo16Cr15W ХН65МВУ NW 0276
